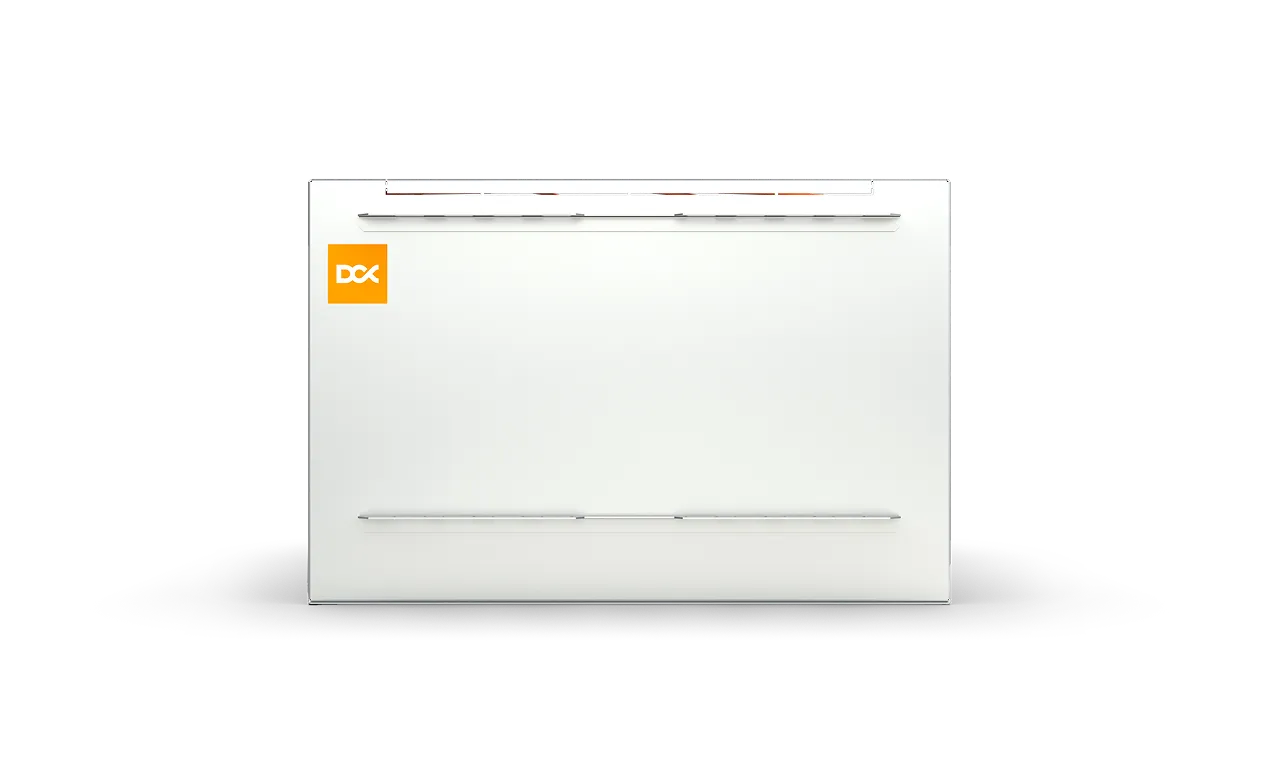

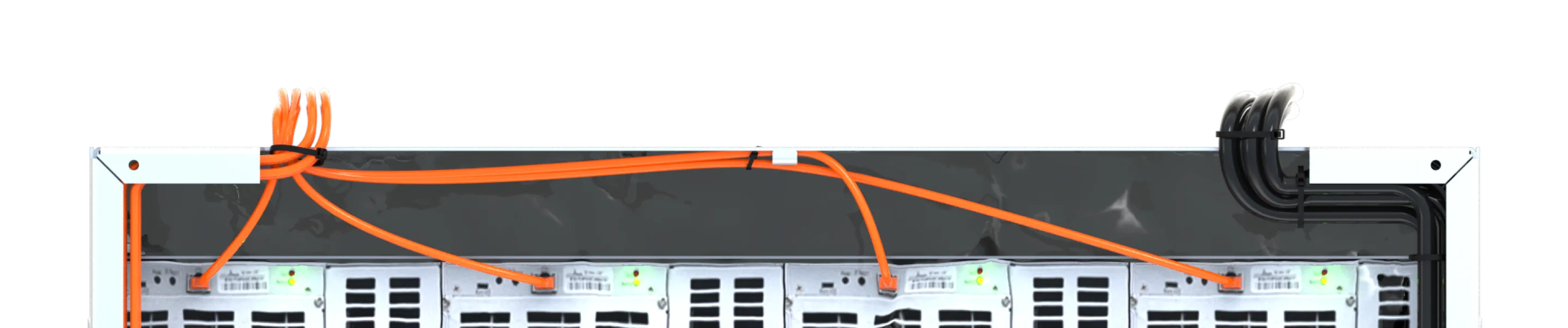

DCX PRO 9
Immersion Tank
The king of density. Our PRO 9 immersion enclosure can host up to 8 Antminers S19/S21, 8 Canaan Avalon 1566i, or any other similar sized miners.
The king of density. Our PRO 9 immersion enclosure can host up to 8 Antminers S19/S21, 8 Canaan Avalon 1566i, or any other similar sized miners.
Up to 40kW of cooling capacity per tank and up to 120 kW of cooling per rack. The most robust solution in our roster.
Host 8 Antminers S19/S21, 8 Canaan Avalon 1566i, or any other similar sized miner for maximum crypto yield.
With only 1 m² needed for each tank or rack system, it is one of the most scalable solutions on the market.
Equipped with robust industrial-grade pump and heat exchanger, DCX PRO 9 always keeps your operation cool and efficient.
The most popular immersion cooling system in the world, but upgraded with 40% larger heat exchanger and 1.5x stronger pump than its predecessor. Dedicated for overclocked cryptomining delivers 40kW heat transfer from single enclosure at 40C/104F inlet & 60C/140F outlet. Dedicated for all popular miners, hosting 8 x Antminer S19/S21 or similar, 8 x M66 MicroBT Whatsminers, 8 x Canaan Avalon 1566 miners, or any other similar sized miners. PRO 9 Immersion Mining Tank is equipped with miner specific flow plates and grids to provide balanced flow and saturation for all miners. System can be stacked in Rack System for megawatt sized installations.
Hosting capacity
8 MicroBT 66 Whatsminer
8 Bitmain S19/S21 Immersion Antminer
8 Canaan Avalon 14xx / 15xx miner
Heat Transfer
Capacity
Up to 48kW per tank/ up to 120kW per rack
Heat Rejection
Primary water or water-PG25 loop
Monitoring
Optional sensors with supply and return temperatures monitoring.
Dielectric Fluid
200-230L Capacity
Noise
30dB(A)
General construction
All-steel internal enclosure with heat isolation covers
Power Standard
230-240V 1Ph 50/60 Hz (120V 60hz with optional transformer)
Pump system & Connections
Industrial circulation pump
Brazed Plate with nominal capacity 150kW
Dimensions
L: 80cm / 31.5" | W: 85cm / 33.5" | H: 50 cm / 19"
Weight
Approx 50 kg / 100 lbs dry | 100 kg / 200 lbs filled

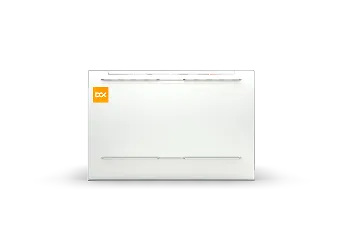

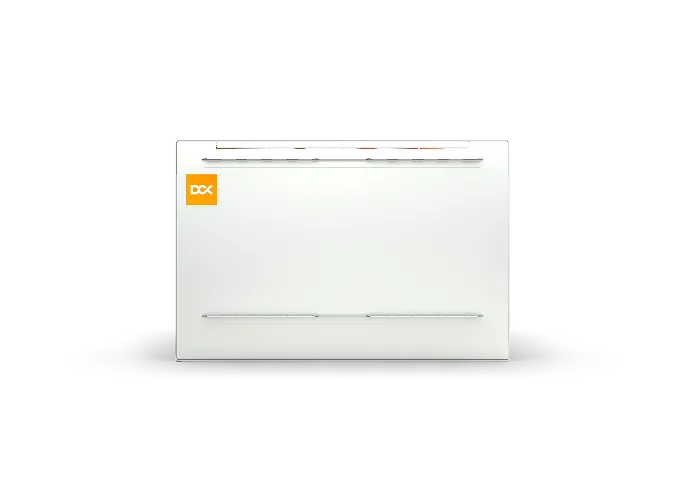

Lets you get hands-on with immersion for the price of one air-cooled rig, without committing to new heat-rejection gear. Compact, efficient, and ready to cool.
or 8 Canaan Avalon 1566i, or any other similar sized miner
Affordable start:
sub-€1.3 k for a full immersion cell. Perfect for testing or solo mining with minimal investment.
Hardware protection:
Eliminates dust and improves miner lifespan through passive liquid cooling.
Whisper-quiet hashing:
Miner fans come off—only coolant flow is audible.
Compact footprint:
One Euro-pallet (< 1 m²). Rolls through a standard door.

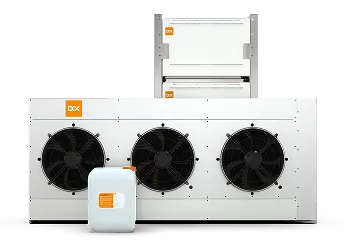

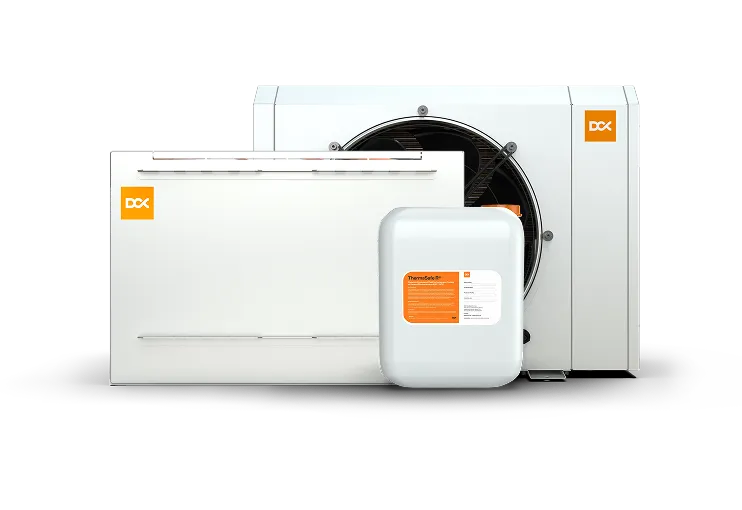

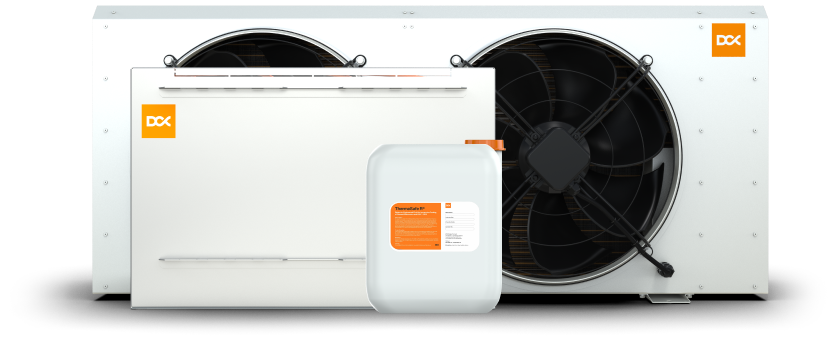

Plug in. Power up. Includes a PRO 9 tank, 40kW dry cooler, and fluid—everything you need to launch immersion mining with zero guesswork.
Or 8 Canaan Avalon 1566i, or any other similar sized miner
Full house:
Factory-matched dry-cooler, pumps, hoses, and dielectric fluid—unbox, power, hash.
All-weather ready:
-10 °C … +45 °C ambient spec for rooftop, yard, or container installs.
Premium single-phase fluid included:
odor-free, 98% biodegradable 10-year service life. The best available.
Active fluid circulation:
ICP40 ensures even heat distribution and no hotspots.

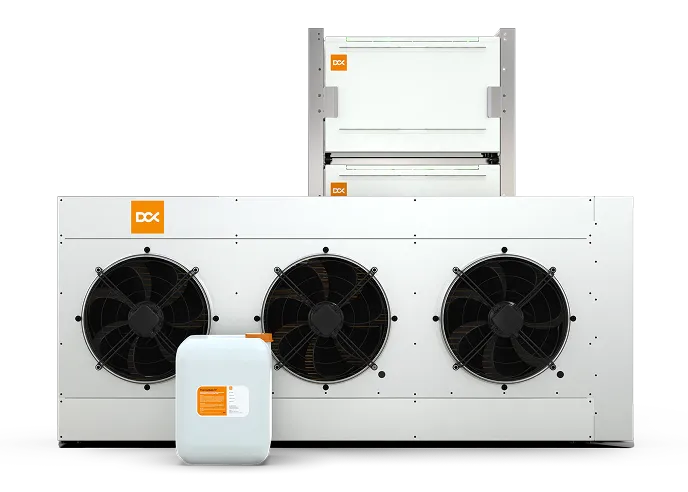

Built to run powerful mining setups in a compact footprint. Delivers the best density and operability once you cross the 100 kW mark—and scales linearly into MW farms.
or 24 Canaan Avalon 1566i, or any other similar sized miner
Datacenter-grade density:
24 × S19/S21 (120 kW) in < 2 m². 3× the hash of an air rack. Centralized, industrial-grade, in-rack cooling.

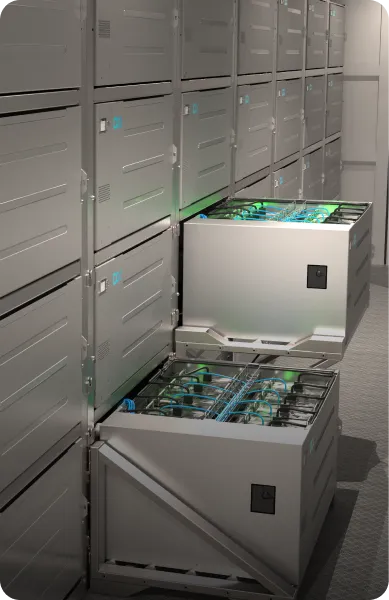

Hot-swap uptime:
Slide a tank out for service while the other two keep ≈ 80 kW hashing.
Easily expandable; fluid distribution and cooling optimized for growth.
Data center-grade design:
Clean setup, reduced noise, easy maintenance, no more dust.
One of the best things about DCX PRO 9 is how versatile it is. Its internal design ensures uniform fluid circulation across all devices, enabling stable overclocking
and extending hardware lifespan, regardless of the deployment scenarios.

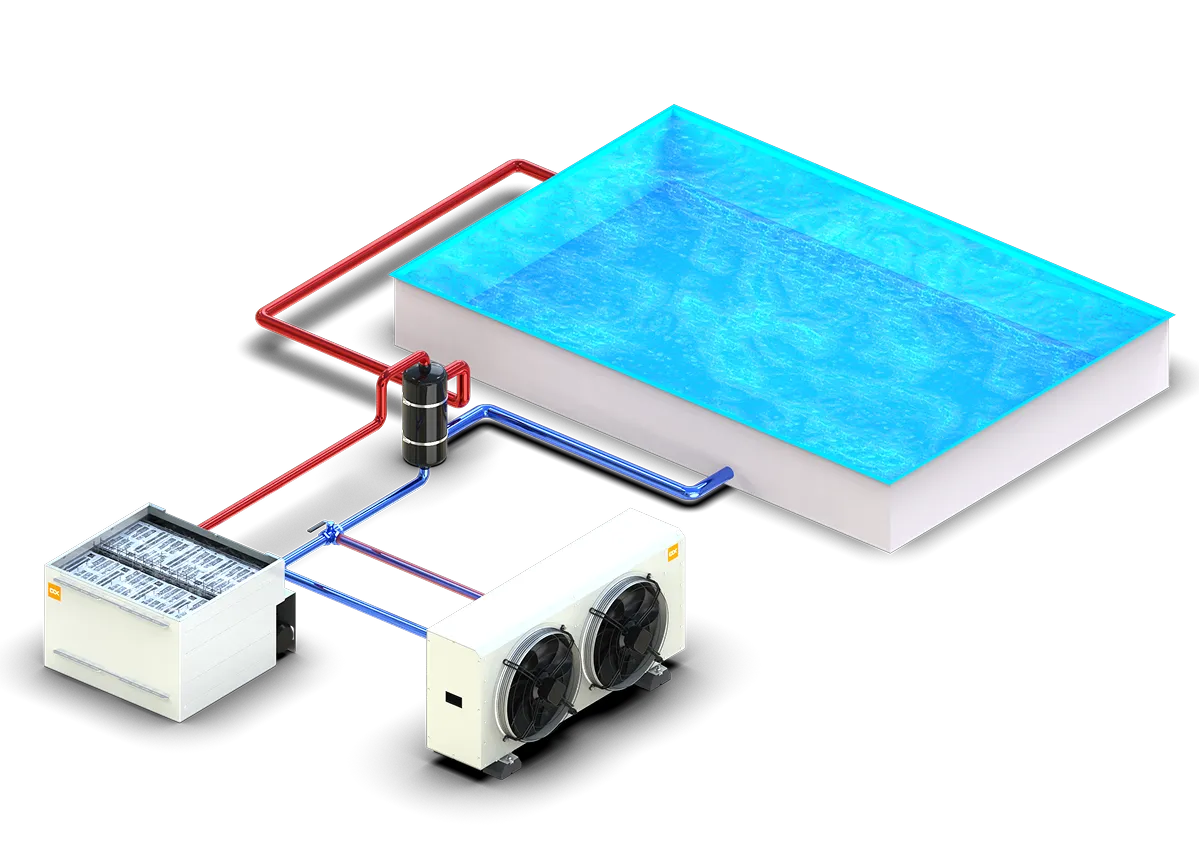

A portion of the thermal energy is redirected to heat a pool, while excess heat is rejected via ambient air, making the setup both sustainable and energy-efficient. The result is a compactimmersion system that turns cooling into a dual-purpose, valuegenerating process.

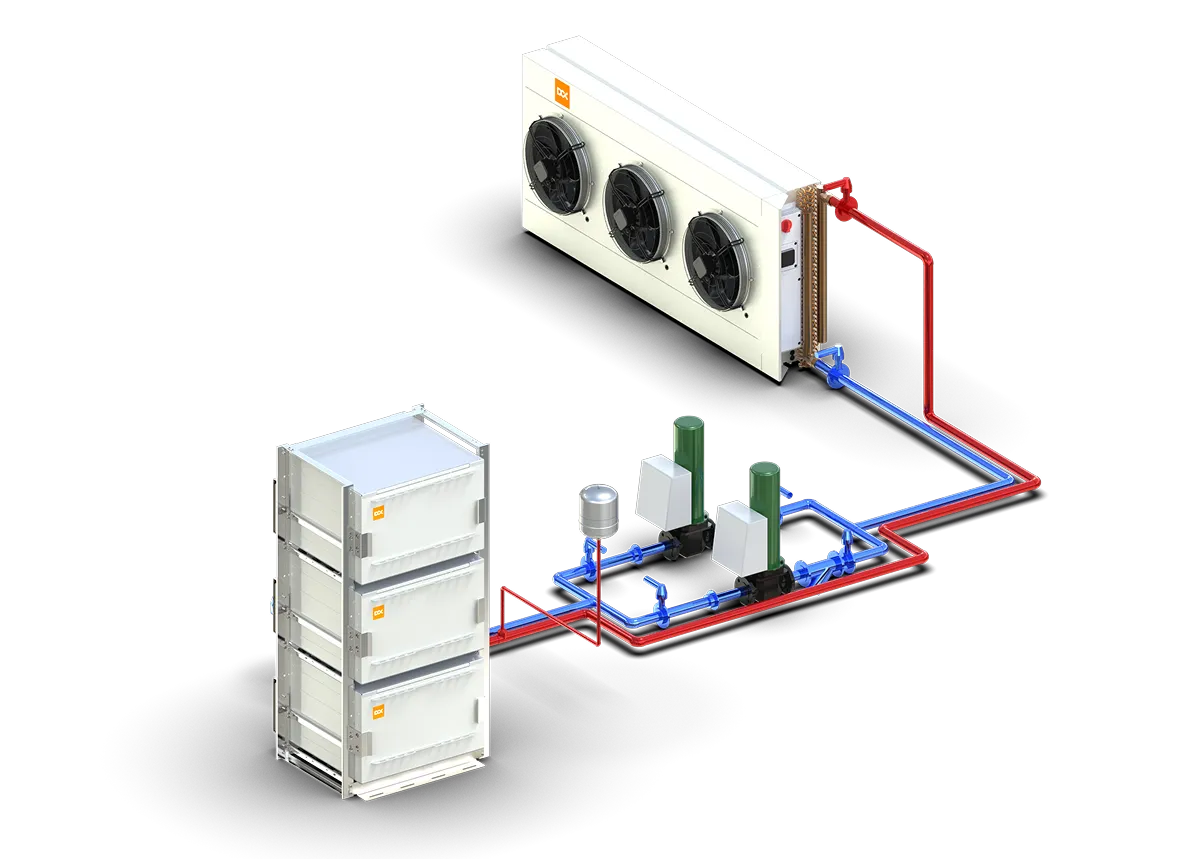

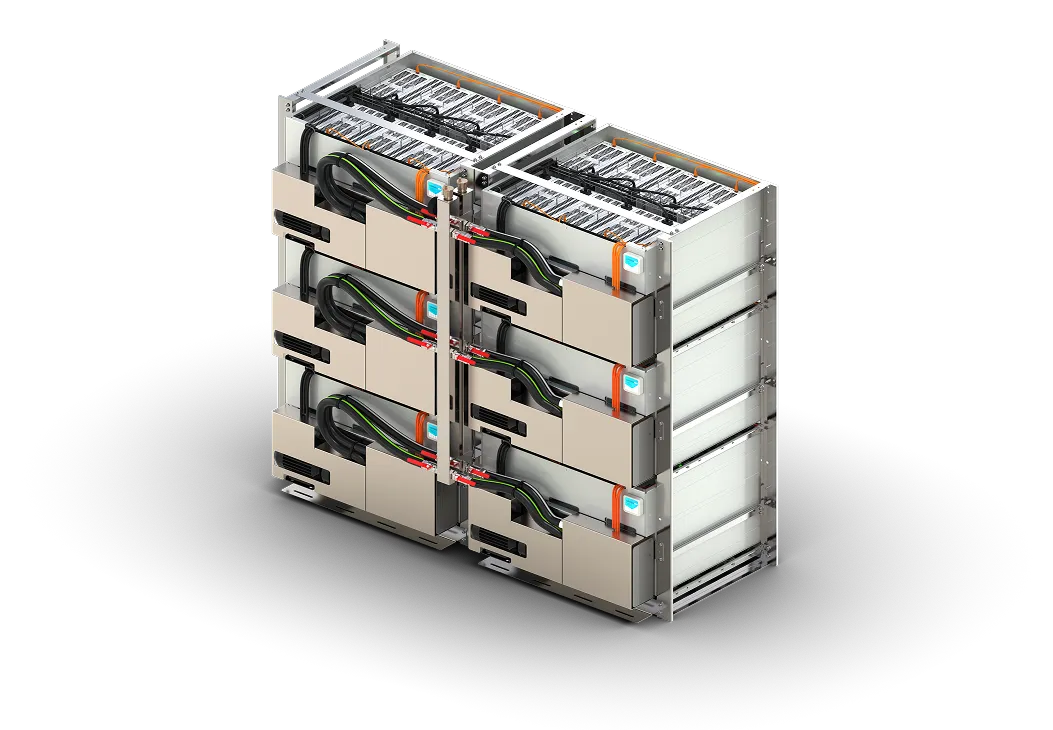

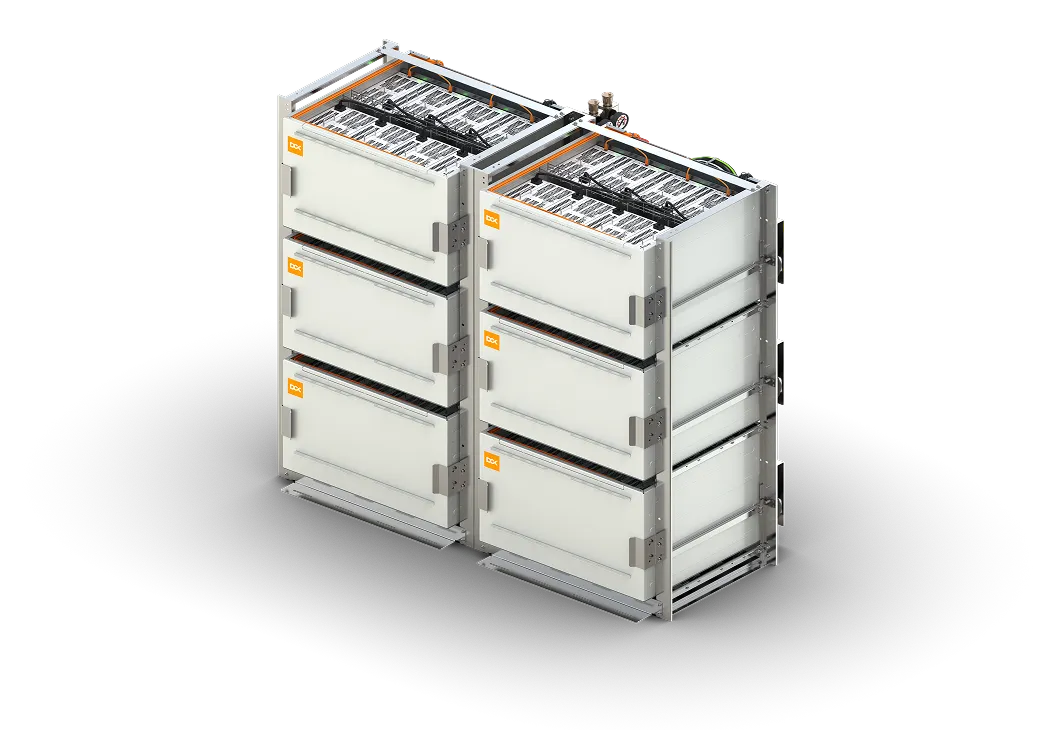

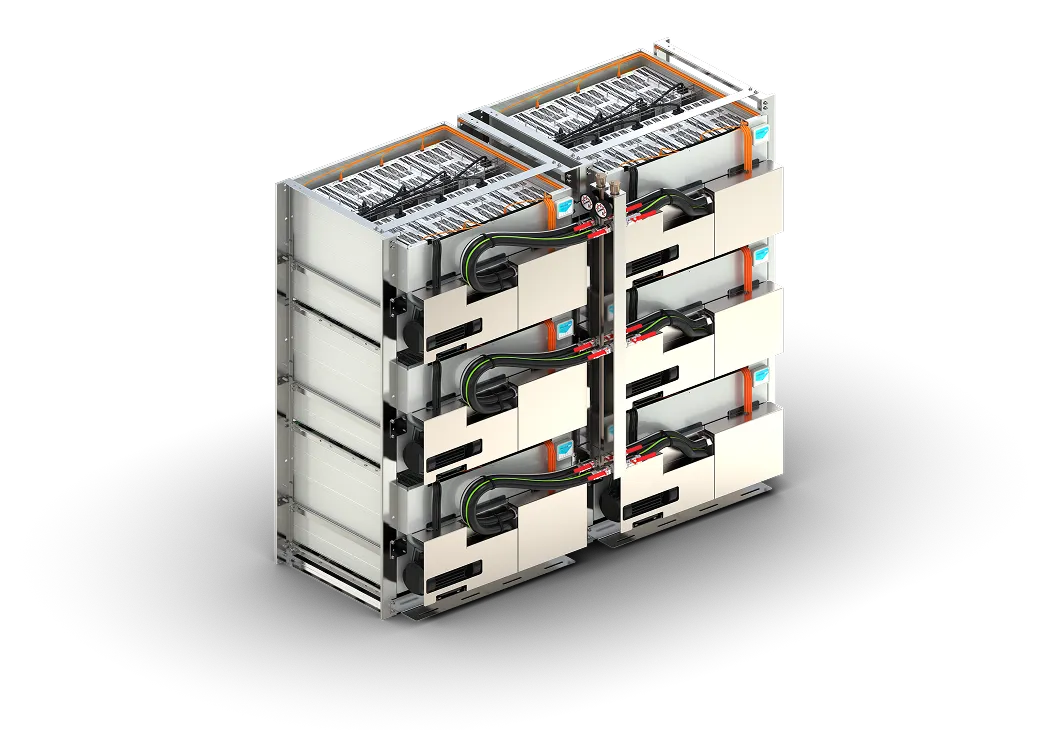

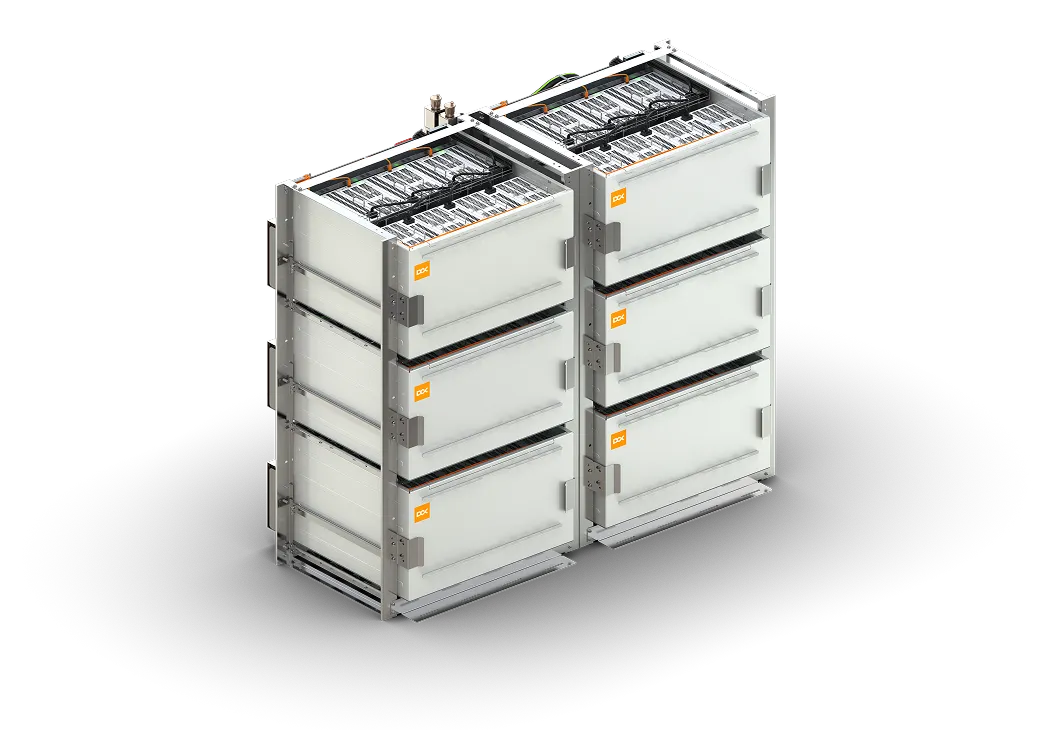

This deployment highlights the DCX PRO 9 Immersion Rack System, combining three stacked PRO 9 tanks with a fully integrated pump loop and external dry cooler. Designed for high-density, scalable mining, the rack system supports up to 24 Antminer S21 units in a compact footprint.

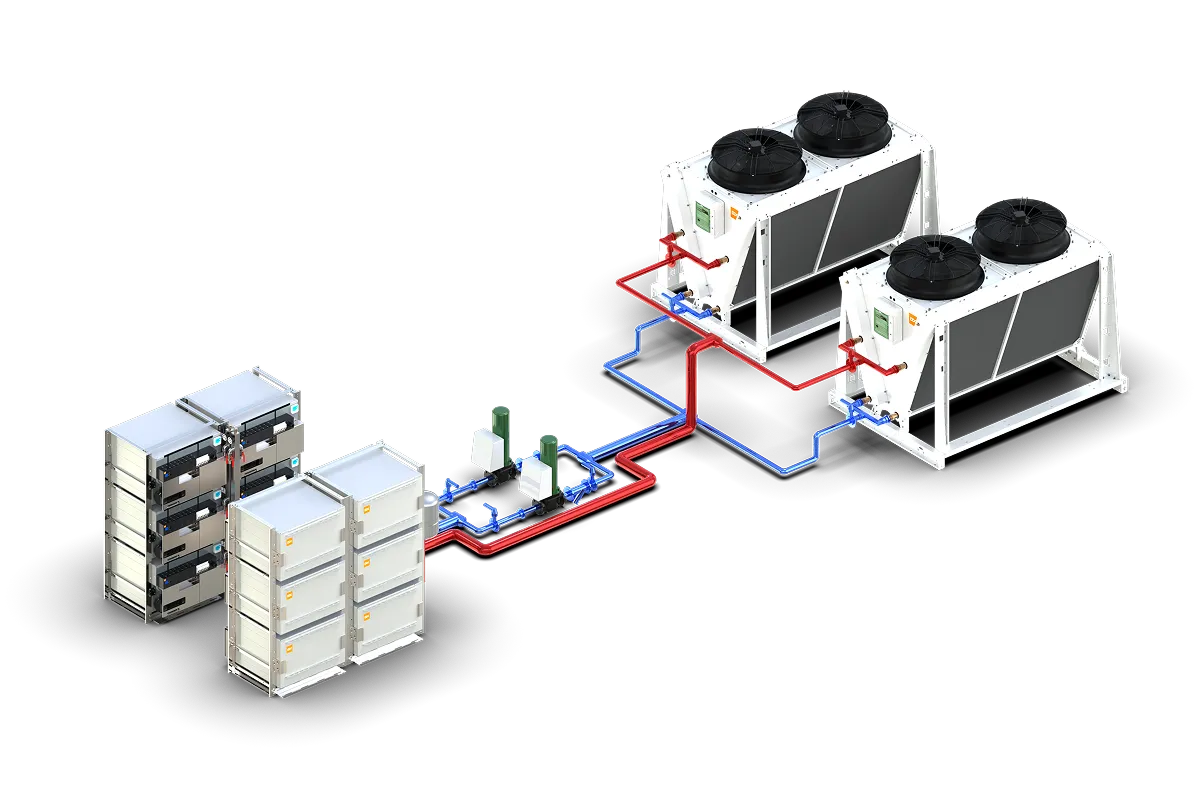

This deployment pairs 20 DCX PRO 9 Rack Systems with a 2 MW dry cooler, forming a high-density, energy-efficient cooling system for industrial-scale mining. Each rack supports 24 Antminer S19/S21 units.

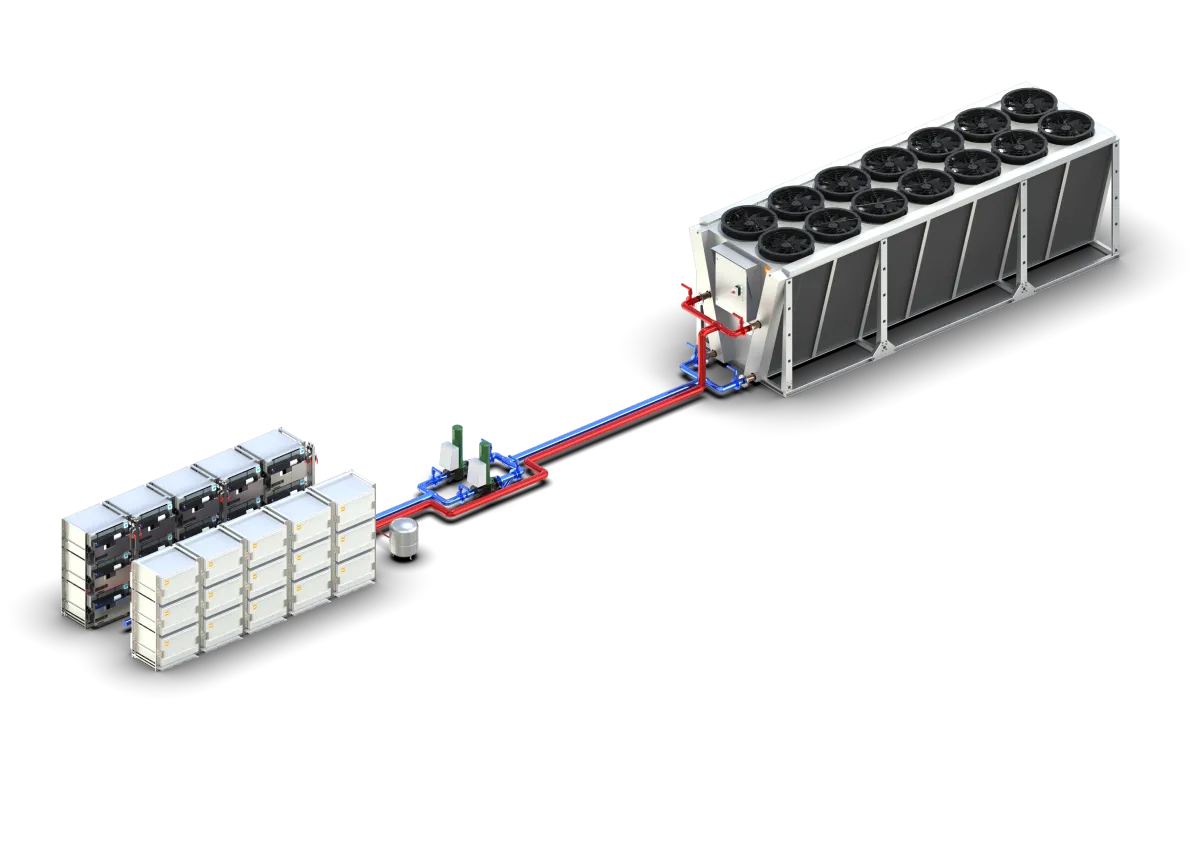

This deployment pairs 30 DCX PRO 9 Rack Systems with a 1MW dry cooler, forming a high-density, energy-efficient cooling system for industrial-scale mining. Each rack supports 24 Antminer S21 units, with a centralized pump loop ensuring optimal fluid circulation. The dry cooler provides reliable heat rejection even in 35°C ambient conditions—making this setup ideal for large operations.

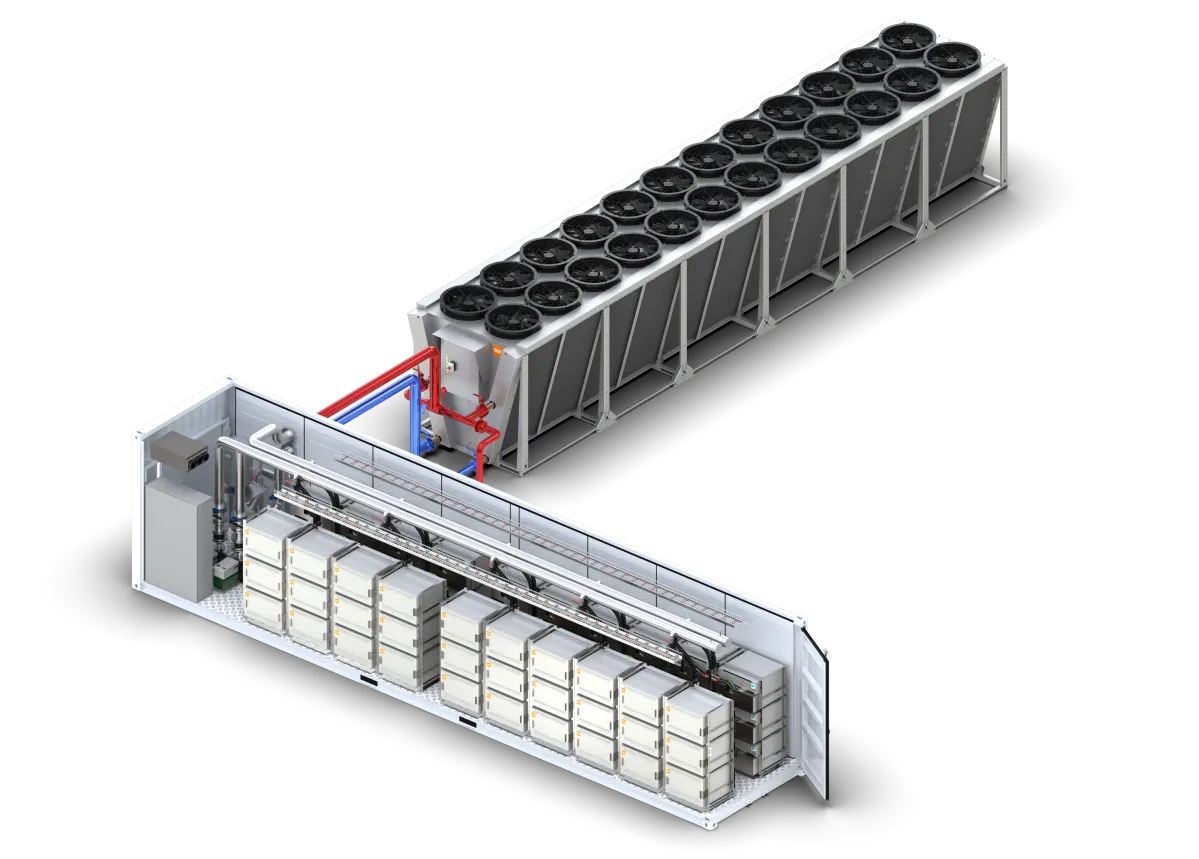

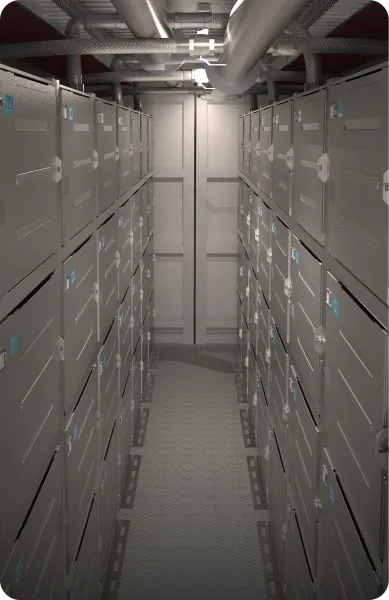

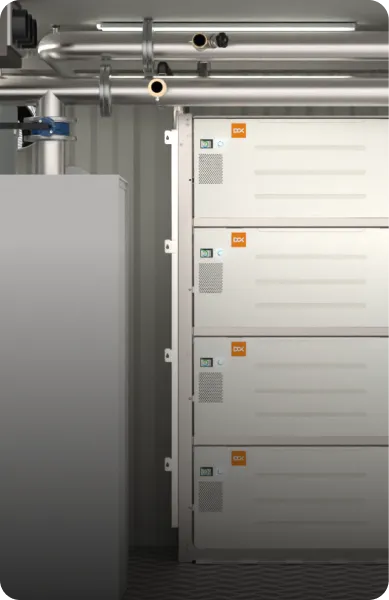

Containerized deployments in 20HC and 40HC ISO formats. Each tank in the container can be equipped with integrated sensors for temperature and fluid monitoring, and connected seamlessly to dry coolers, pump stations, and heat reuse systems, delivering a plug-and-play path to energy-efficient mining.
