At its core, immersion cooling is a thermal management method where electronic components—such as servers, GPUs, or crypto miners—are fully submerged in a dielectric (non-conductive) liquid. Unlike air, which is a poor conductor of heat, these engineered cooling fluids are designed to efficiently absorb and transfer large amounts of thermal energy.
The process begins as the immersed hardware operates and generates heat. Instead of relying on fans to push hot air away from components (as in traditional air cooling), the heat is immediately transferred to the surrounding liquid through direct contact. This enables near-instant thermal absorption, eliminating hotspots and ensuring a highly uniform operating temperature across the entire system.
Once the liquid absorbs this heat, a closed-loop circulation system takes over. Pumps move the heated fluid through a heat exchanger—such as a dry cooler, radiator, or external cooling tower—where the heat is expelled into the environment (often air-cooled). The now-cooled liquid is then returned to the immersion tank to repeat the process.

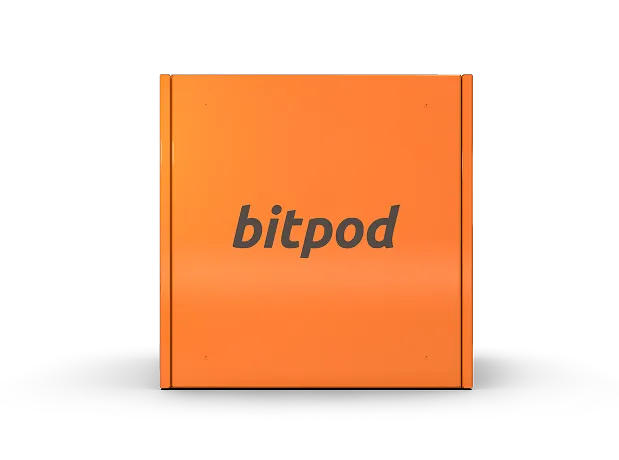

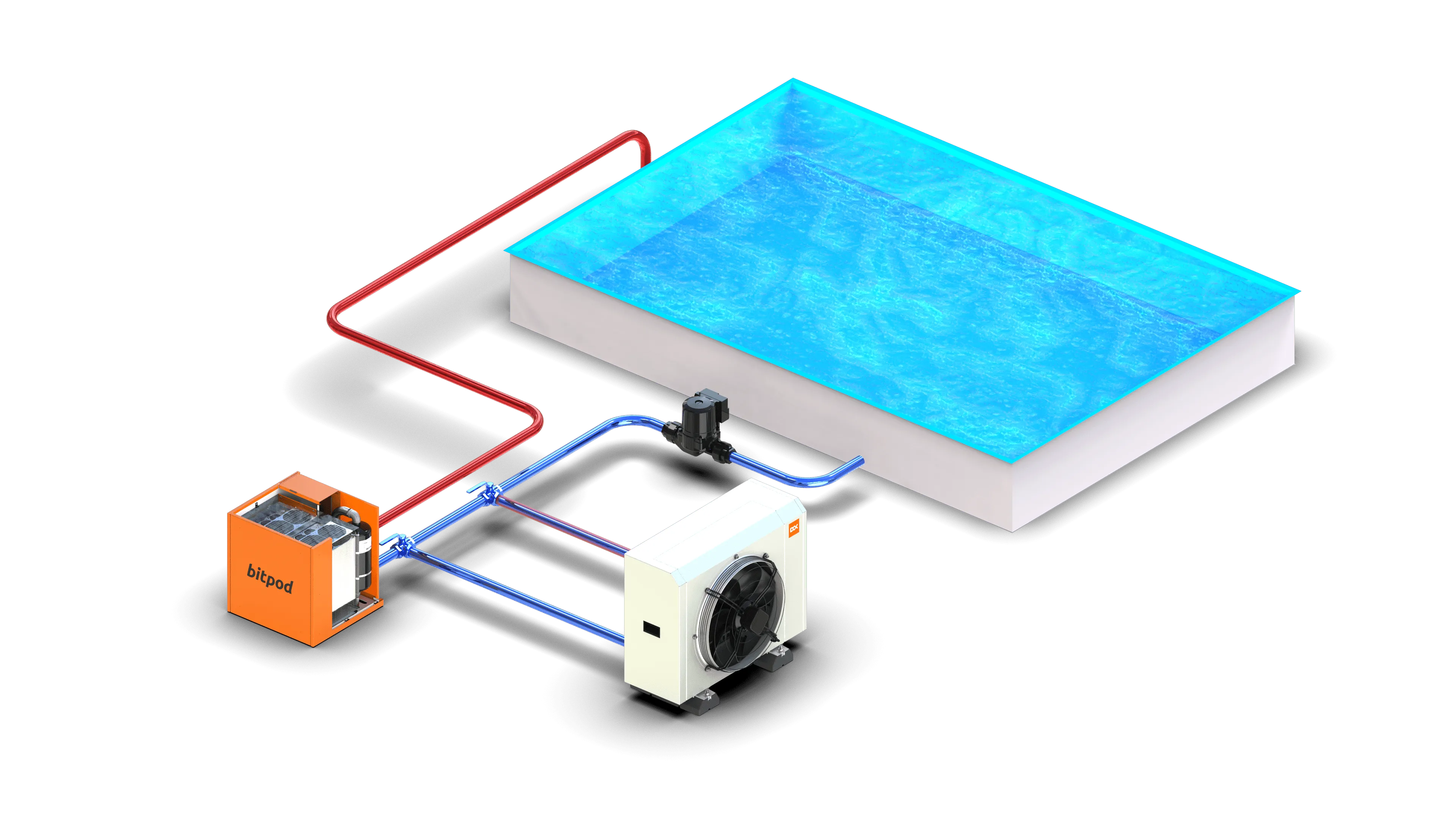

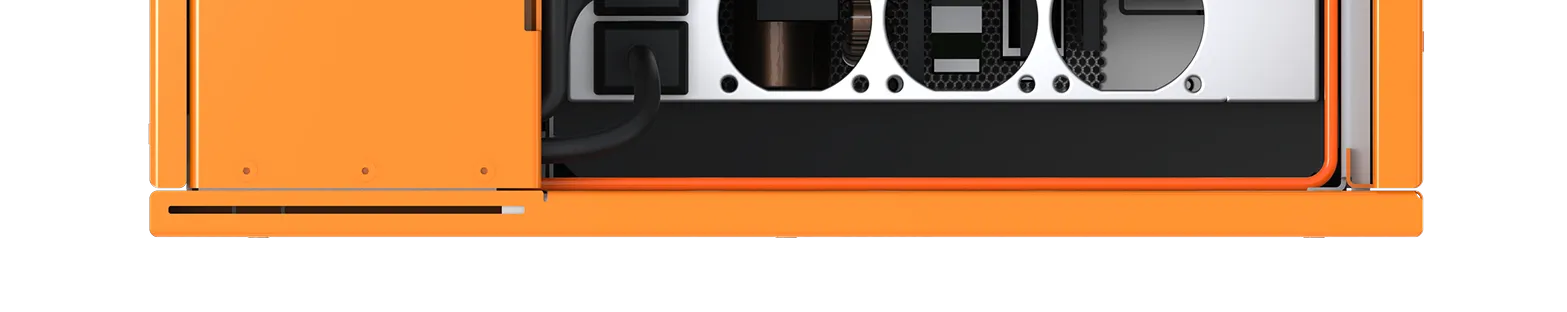

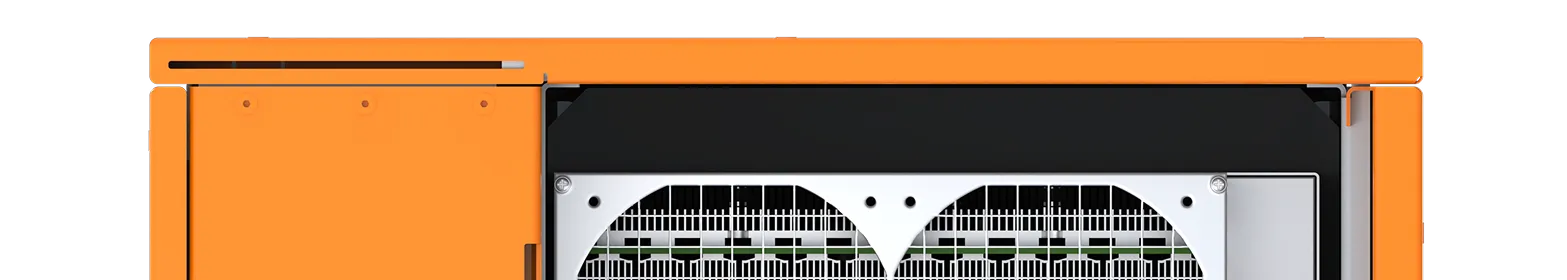

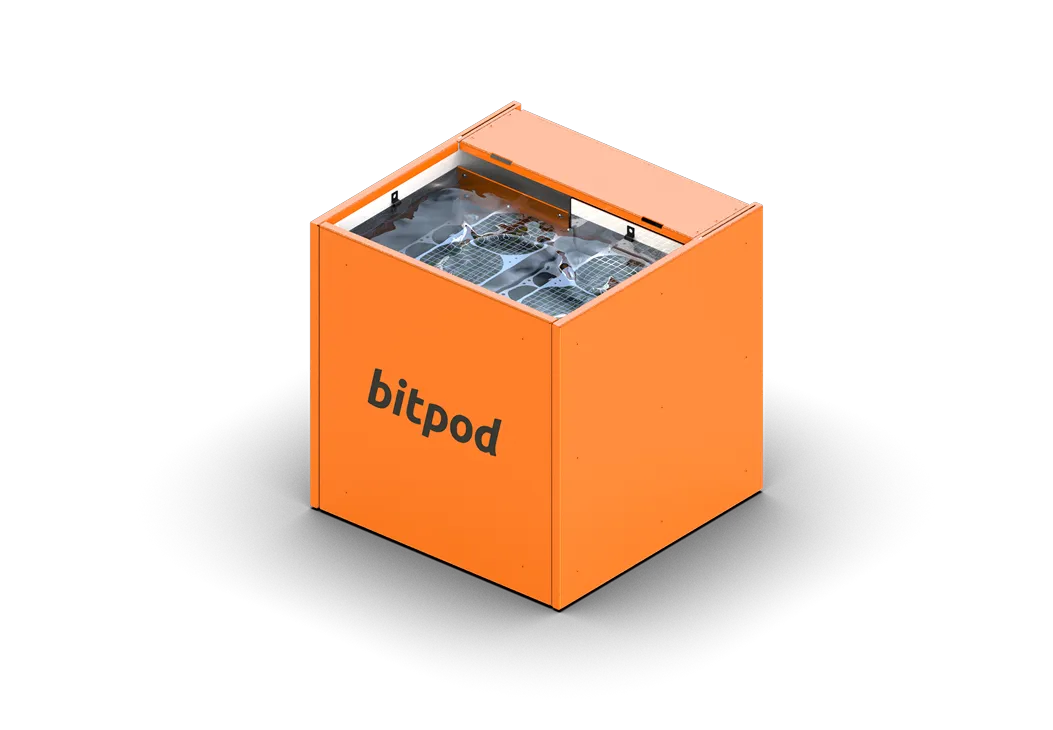

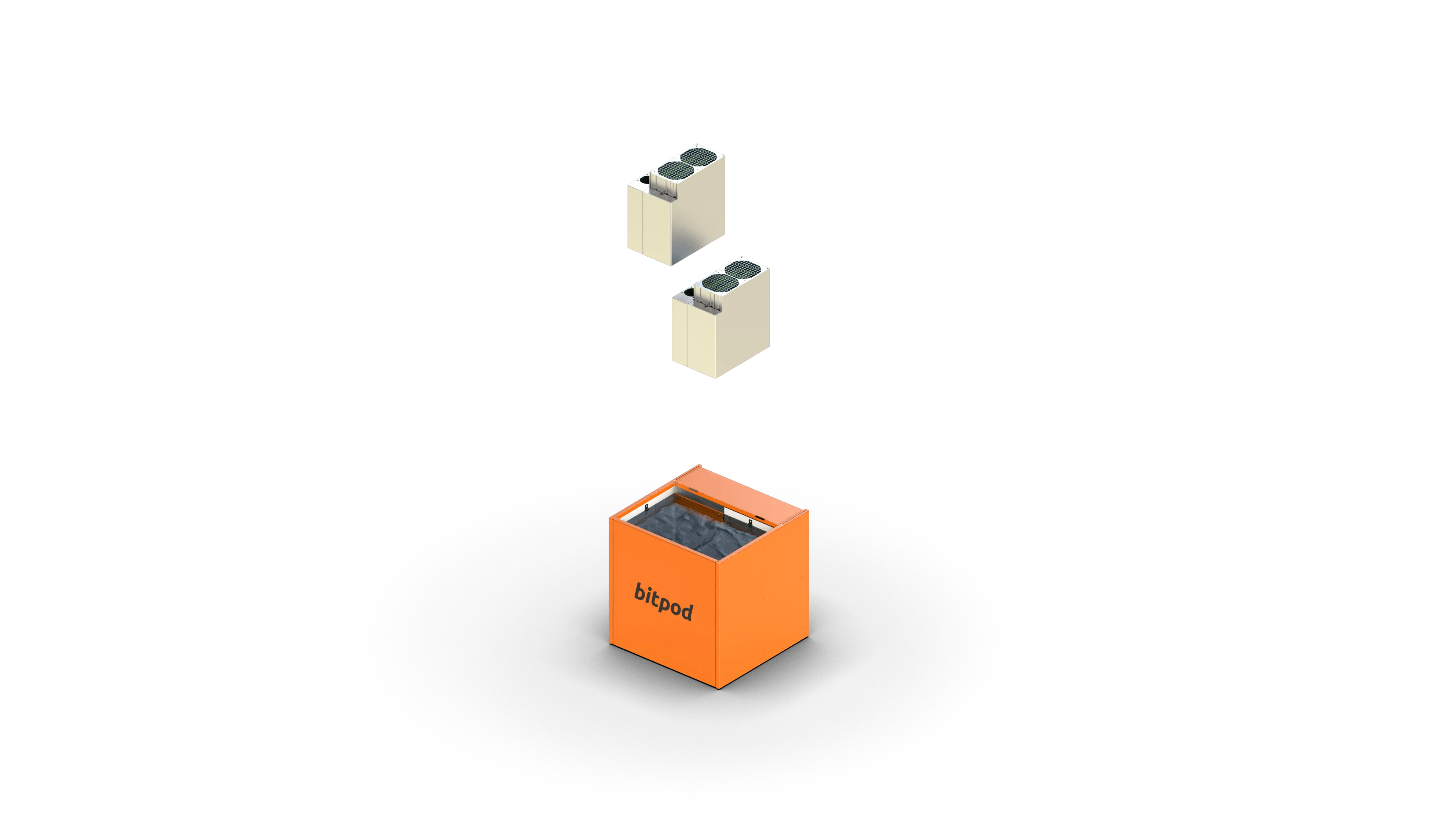

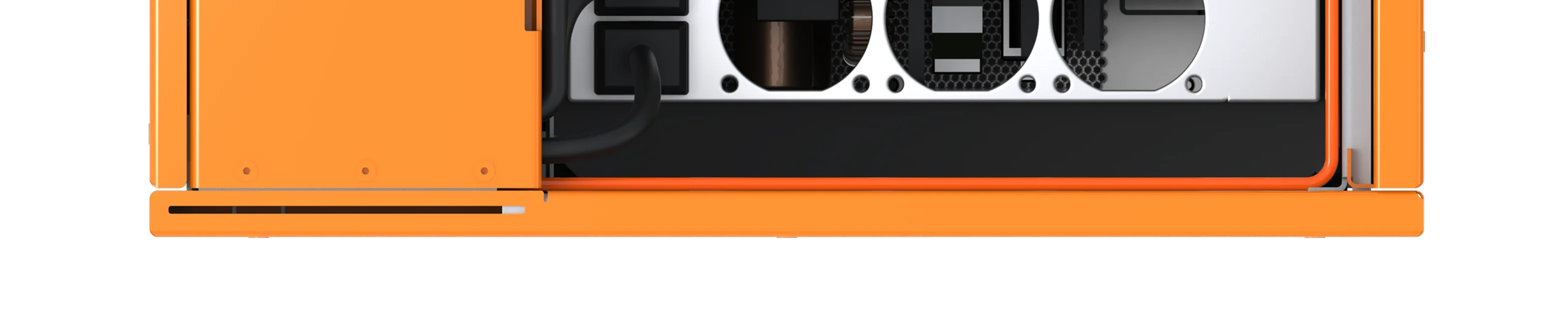

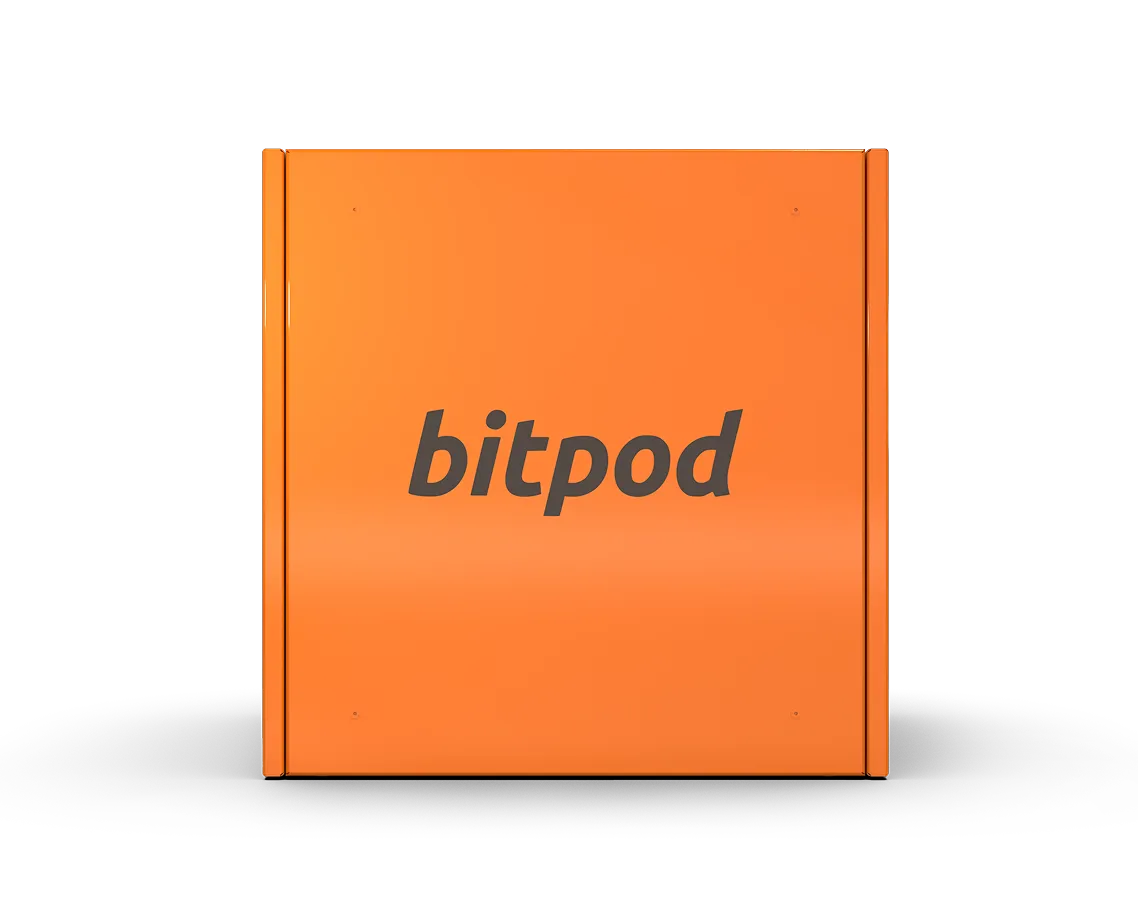

This unique single or dual loop immersion tank may be upgraded with dedicated pool or plate heat exchanger and connected directly to your home or pool, replacing power hungry heaters or heat pumps. DCX Bitpod 2 is equipped with industrial pump, hydraulics and monitoring sensors with colour high-res LCD, remote temperature / status control and notifications. Typical applications: pool heating, water / boiler heating, floor heating. It’s the most universal and affordable home mining system, that can heat your home and earn money at the same time.
Hosting capacity
3 MicroBt M56/66 Whatsminer
2 Bitmain S19 / 21XP IMM Immersion Antminer
2 x Canaan Avalon 14xx / 15xx miner
Heat Transfer Capacity
+20kW
Heat Rejection
Single loop (oil cooler)
Dual loop (heat exchanger for home heating / dry cooler)

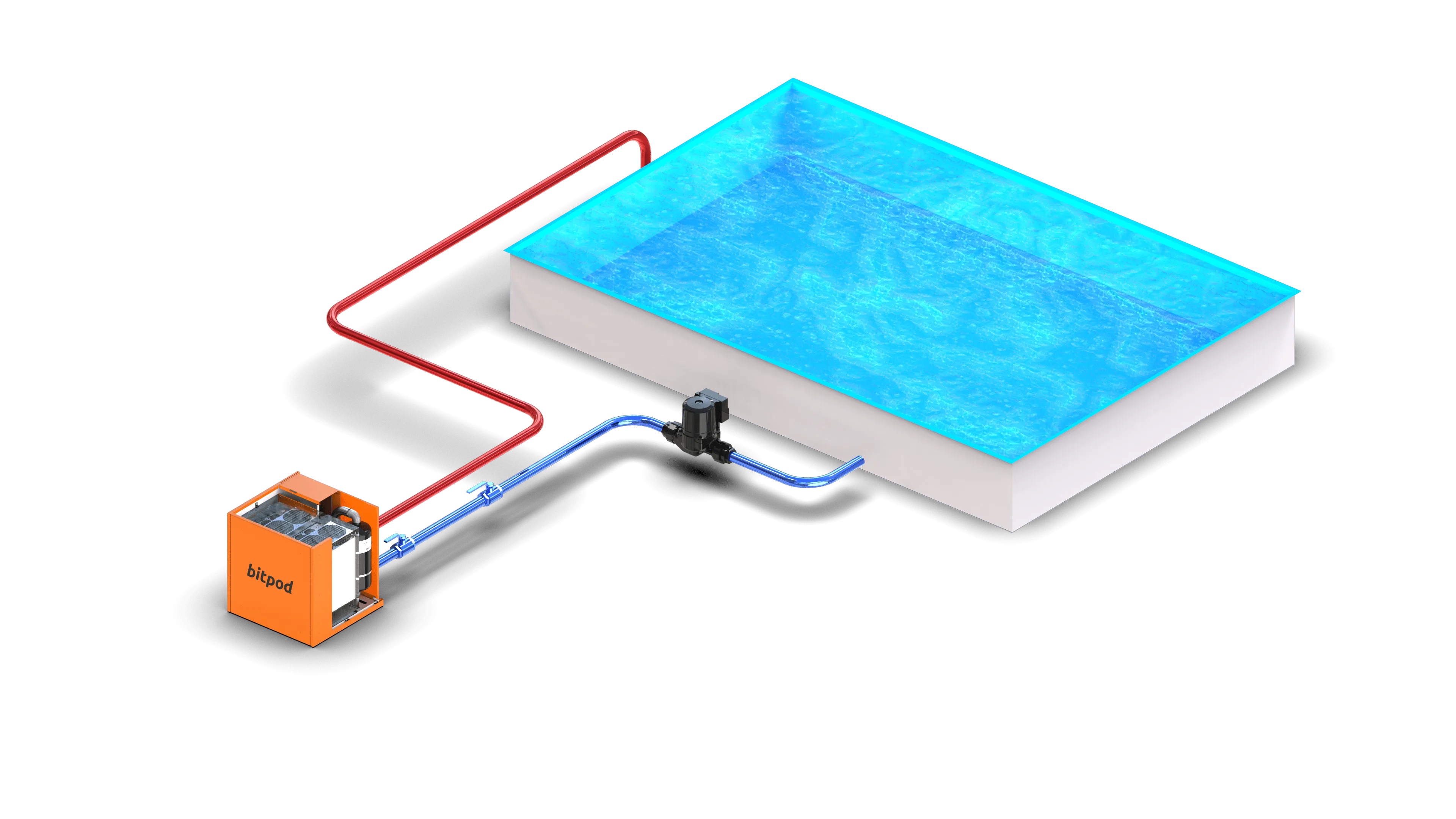

Pool (pool heat exchanger)
Monitoring
High-Res color LCD, inlet & outlet temp. sensors
Remote web based temperature, performance, status control & notification
API for data exchange
Dielectric Fluid
66LFluid In / Out[°C]60 / 40
Noise
30dB(A)
General construction
All-steel internal enclosure with heat isolation covers
Power Standard
230-240V 1Ph 50/60 Hz (120V 60hz with optional transformer)
Pump system & Connections
Industrial circulation pump
Optional plate heat exchanger (1" DN25 connection)
Optional pool heat exchanger (1 1/2" | 6/4" | DN40 connection)
Dimensions
500(W)x480(D)x500(H) mm
Weight
Approx 50 kg / 100 lbs dry | 100 kg / 200 lbs filled

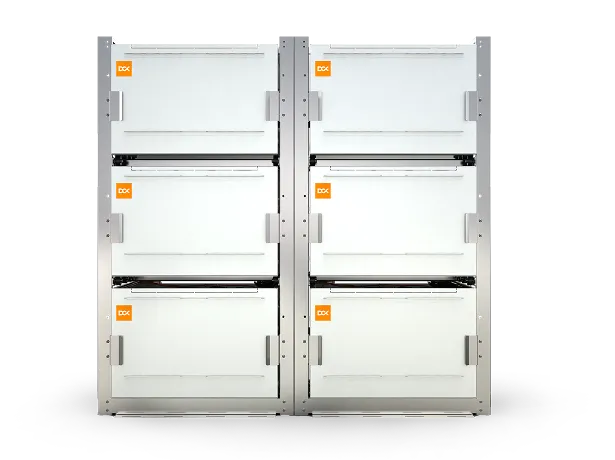

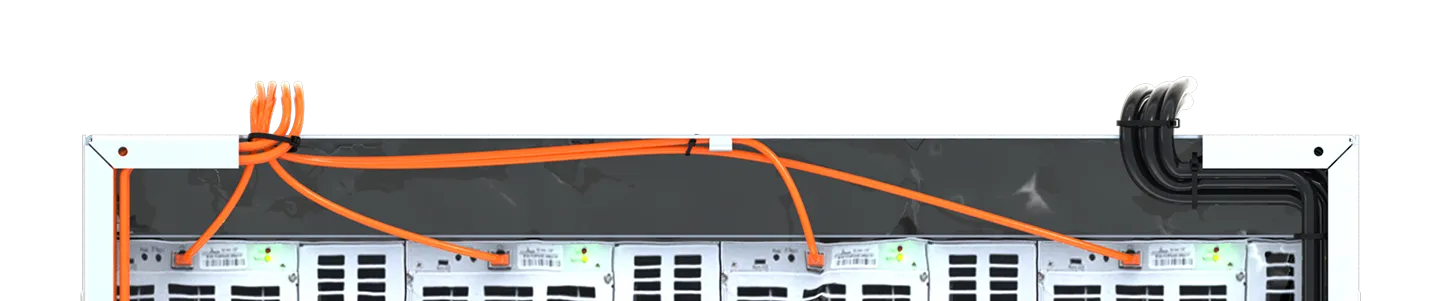

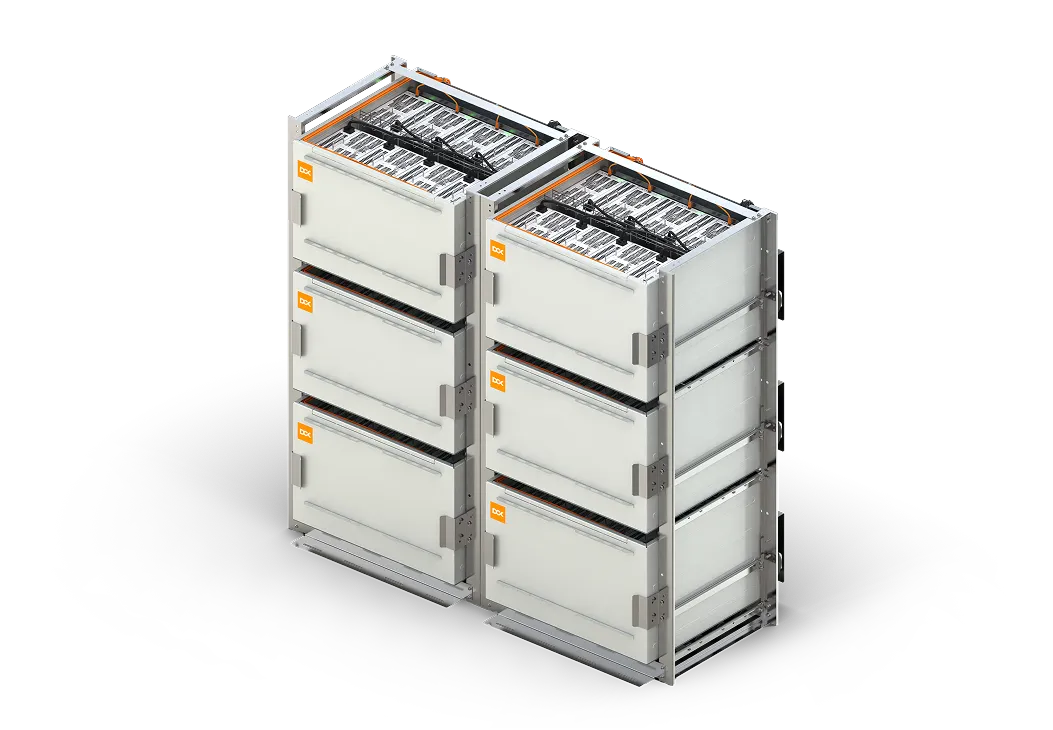

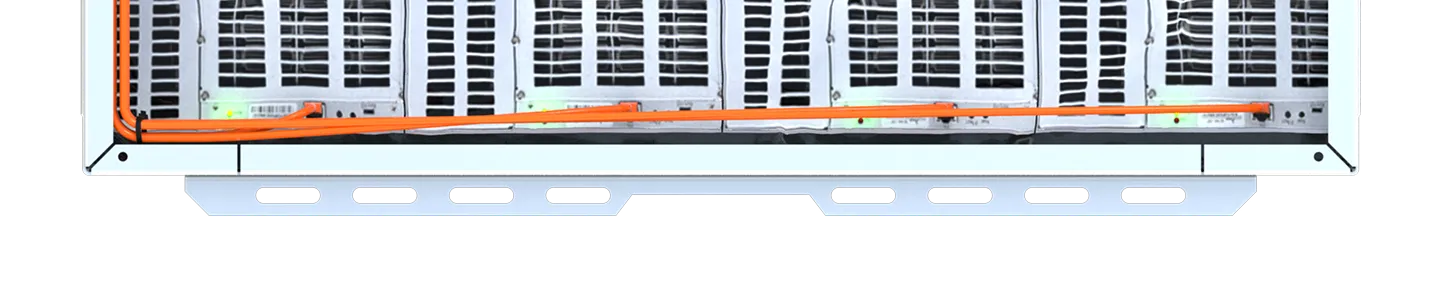

The most popular immersion cooling system in the world, but upgraded with 40% larger heat exchanger and 1.5x stronger pump than its predecessor. Dedicated for overclocked cryptomining delivers 48kW heat transfer from single enclosure at 40C/104F inlet & 60C/140F outlet. Dedicated for all popular miners, hosting 5 x Antminer S21 IMM or similar, and 12 x M30 MicroBT Whatsminers. PRO 9 Immersion Mining Tank is equipped with miner specific flow plates and grids to provide balanced flow and saturation for all miners. System can be stacked in Rack System for megawatt sized installations.
Hosting capacity
8 MicroBt M56/66 Whatsminer
5 Bitmain 21XP IMM Immersion Antminer
8 Canaan Avalon 14xx / 15xx miner
Heat Transfer Capacity
Up to 48kW per tank/ up to 120kW per rack
Heat Rejection
Primary water or water-PG25 loop
Monitoring
Optional sensors with supply and return temperatures monitoring.
Dielectric Fluid
200-230L Capacity
Noise
30dB(A)
General construction
All-steel internal enclosure with heat isolation covers
Power Standard
230-240V 1Ph 50/60 Hz (120V 60hz with optional transformer)
Pump system & Connections
Industrial circulation pump
Brazed Plate with nominal capacity 150kW
Dimensions
L: 80cm / 31.5" | W: 85cm / 33.5" | H: 50 cm / 19"
Weight
Approx 50 kg / 100 lbs dry | 100 kg / 200 lbs filled

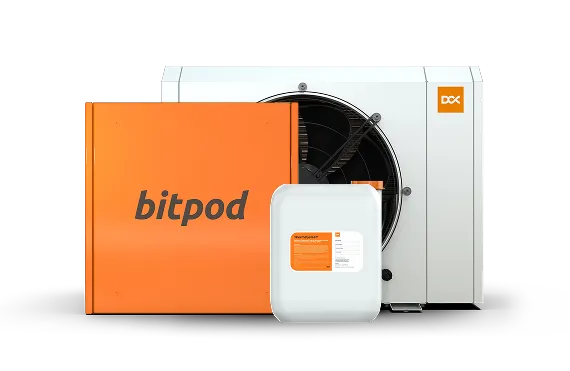

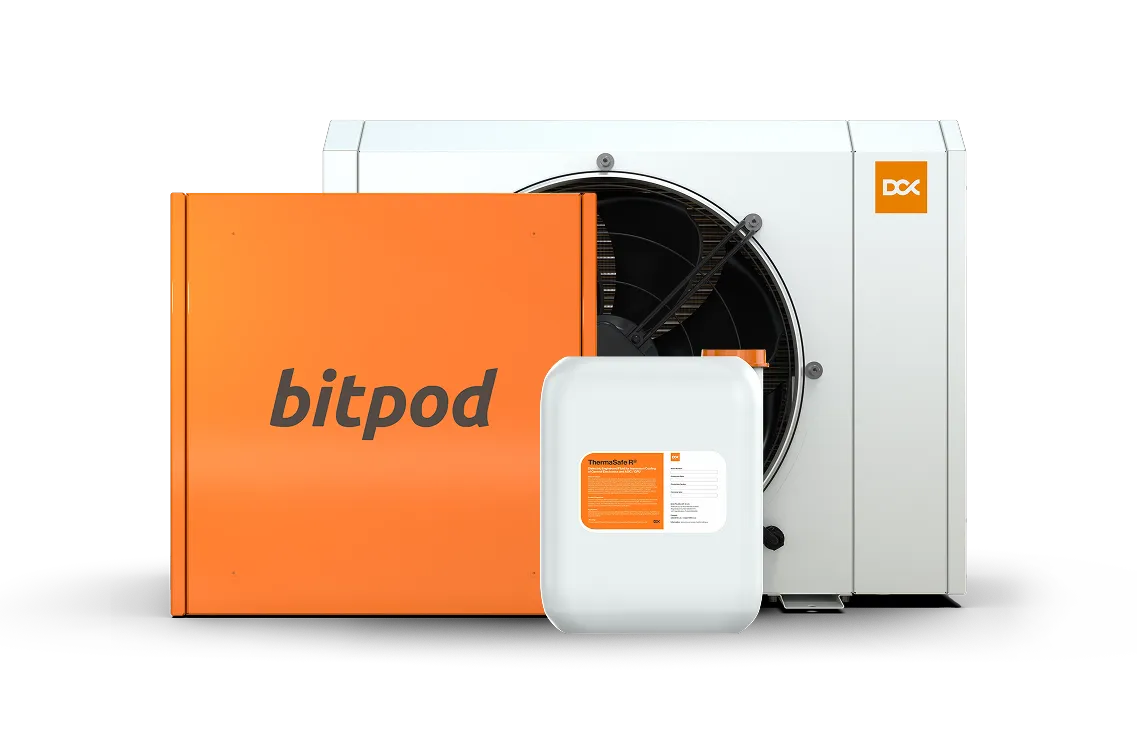

A complete solution that consists of Bitpod, ICP15 and 66L of Dielectric fluid. Everything you need to start mining crypto immediately!
All-Inclusive Convenience:
Get everything you need—Bitpod, ICP15 dry cooler, and fluid—in one ready-to-run package.
Effortless Heat Reuse:
Recycle heat instantly to warm pools or buildings—no extra components needed.
Intelligent Cooling:
ICP15 ensures optimal performance by rejecting any unused heat, automatically.
The Smart Start:
A fully optimized solution that saves time, maximizes efficiency, and gets you mining from day one.

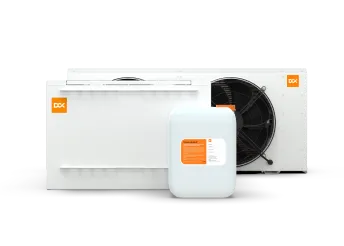

Plug in. Power up. Includes a PRO 9 tank, 40kW dry cooler, and fluid—everything you need to launch immersion mining with zero guesswork.
Or 8 Canaan Avalon 1566i, or any other similar sized miner
Full house:
Factory-matched dry-cooler, pumps, hoses, and dielectric fluid—unbox, power, hash.
All-weather ready:
-10 °C … +45 °C ambient spec for rooftop, yard, or container installs.
Premium single-phase fluid included: odor-free, 98% biodegradable 10-year service life. The best available.
Active fluid circulation:
ICP40 ensures even heat distribution and no hotspots.
